PET composite aramid paper tape

The substrate is NOMEX paper. Coating high-performance, flame-retardant silicone pressure-sensitive adhesive. Coating accuracy reaches ± 2.5um Nomex paper uses high-temperature resistant NOMEX insulation paper imported from DuPont in the United States as the substrate, which has a much higher fire and flame retardant effect than ordinary insulation paper Nome paper tape is a fireproof single-sided tape coated with flame-retardant series adhesive as the substrate. It is insulated, has good adhesion, high temperature resistance, strong retention force, and does not leave any residue

在线咨询

15062637229

返回列表

产品详情

Product application

H-grade heat-resistant insulation binding.Heavy load,high-temperature equipment or air conditioning contactors.High temperature sandblasting protection and high-strength insulation protection such as lithium manganese batery insulation wrapping.Surface protectionin powder spraying. insulation,bundling,and long-term protection of coils,motors,and transformers,Repair and strengthen insulation of mining equipment.

Product performance

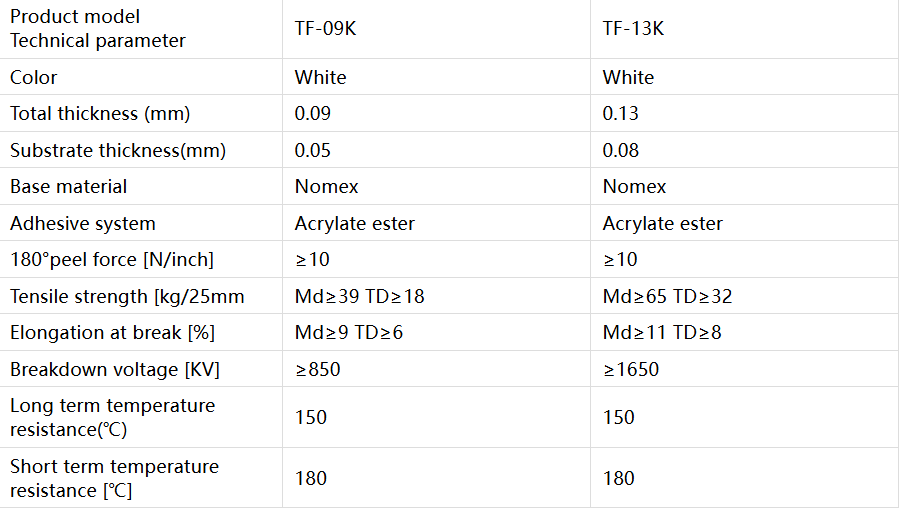

Product model Technical parameter	TF-09K	TF-13K
Color	White	White
Total thickness (mm)	0.09	0.13
Substrate thickness(mm)	0.05	0.08
Base material	Nomex	Nomex
Adhesive system	Acrylate ester	Acrylate ester
180°peel force [N/inch]	≥10	≥10
Tensile strength [kg/25mm	Md≥39 TD≥18	Md≥65 TD≥32
Elongation at break [%]	Md≥9 TD≥6	Md≥11 TD≥8
Breakdown voltage [KV]	≥850	≥1650
Long term temperature resistance(℃)	150	150
Short term temperature resistance [℃]	180	180
