Product application
H-grade heat-resistant insulation binding.Heavy load,high-temperature equipment or air conditioning contactors.High temperature sandblasting protection and high-strength insulation protection such as lithium manganese batery insulation wrapping.Surface protectionin powder spraying. insulation,bundling,and long-term protection of coils,motors,and transformers,Repair and strengthen insulation of mining equipment.
Product performance

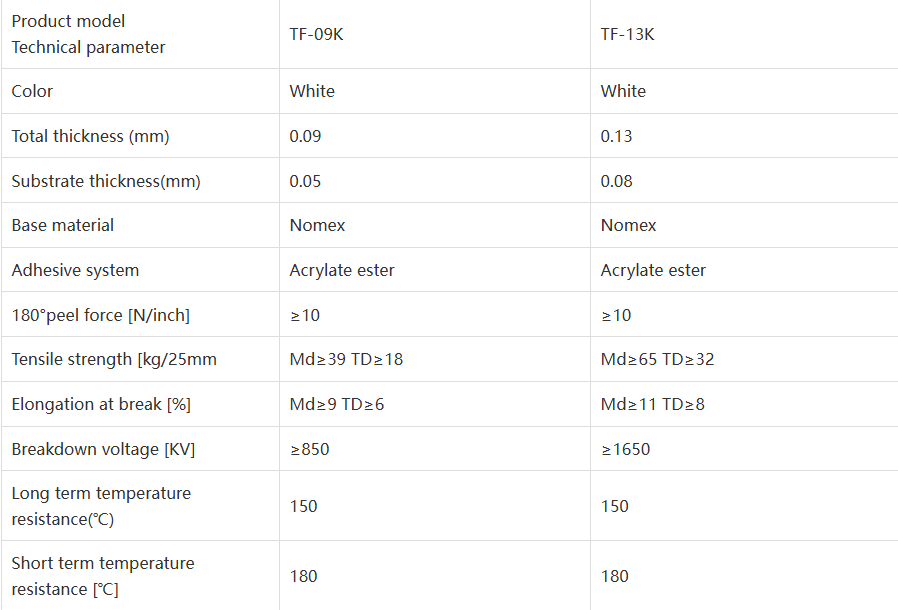

| Product model Technical parameter | TF-09K | TF-13K |
| Color | White | White |
| Total thickness (mm) | 0.09 | 0.13 |
| Substrate thickness(mm) | 0.05 | 0.08 |
| Base material | Nomex | Nomex |
| Adhesive system | Acrylate ester | Acrylate ester |
| 180°peel force [N/inch] | ≥10 | ≥10 |
| Tensile strength [kg/25mm | Md≥39 TD≥18 | Md≥65 TD≥32 |
| Elongation at break [%] | Md≥9 TD≥6 | Md≥11 TD≥8 |
| Breakdown voltage [KV] | ≥850 | ≥1650 |
| Long term temperature resistance(℃) | 150 | 150 |
| Short term temperature resistance [℃] | 180 | 180 |
