glass cloth

Glass cloth tape is made of imported glass cloth coated with high-performance silicone. The product has good temperature resistance (-40 ℃~260 ℃), strong adhesion, toughness, and tear resistance. It is used for high-strength insulation protection such as H-grade heat-resistant insulation binding, various high-temperature sandblasting protection, and lithium manganese battery insulation wrapping. Tape has a particularly high cost performance ratio, and it can completely replace imported products in terms of performance. It is used in high-temperature insulation protection applications such as automotive electronics and digital electronics.

在线咨询

15062637229

返回列表

产品详情

Product application

H-grade heat-resistant insulation binding.Heavy load,high-temperature equipment or air conditioning contactors.High temperature sandblasting protection and high-strength insulation protection such as lithium manganese batery insulation wrapping.Surface protection in powder spraying. insulation,bundling,and long-term protection of coils,motors,and transformers,Repair and strengthen insulation of mining equipment.

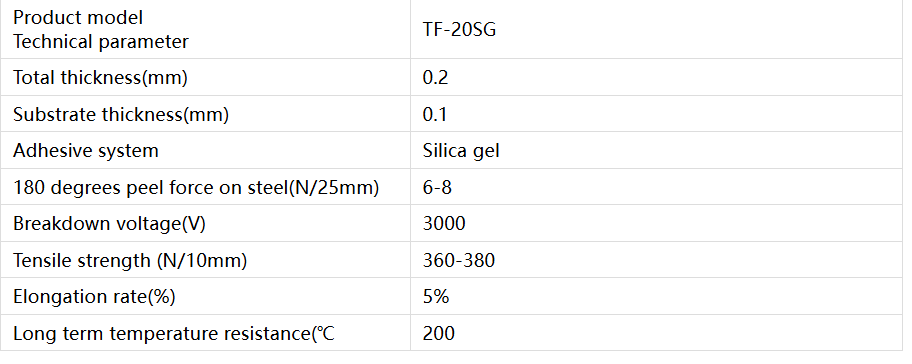

Product performance

Product model Technical parameter	TF-20SG
Total thickness(mm)	0.2
Substrate thickness(mm)	0.1
Adhesive system	Silica gel
180 degrees peel force on steel(N/25mm)	6-8
Breakdown voltage(V)	3000
Tensile strength (N/10mm)	360-380
Elongation rate(%)	5%
Long term temperature resistance(℃	200
