Blue PET high-temperature tape

PET tape, also known as PET high-temperature tape. It is made of PET double-sided coated acrylic adhesive or organic silicon pressure-sensitive adhesive. The tape colors are generally transparent, red, green, blue, and rare include green PET double-sided tape.

在线咨询

15062637229

返回列表

产品详情

Product application

Application in the manufacturing of aluminum-based copper-clad laminates.Protection for PCB crcuit board gold platin and solering.LED encapsulation protection.It can be used repeatedly and easily replaced for shielding,protection,and insulation in the electronics manufacturina industry,as well as in thermoplastic demoldina and other industries.

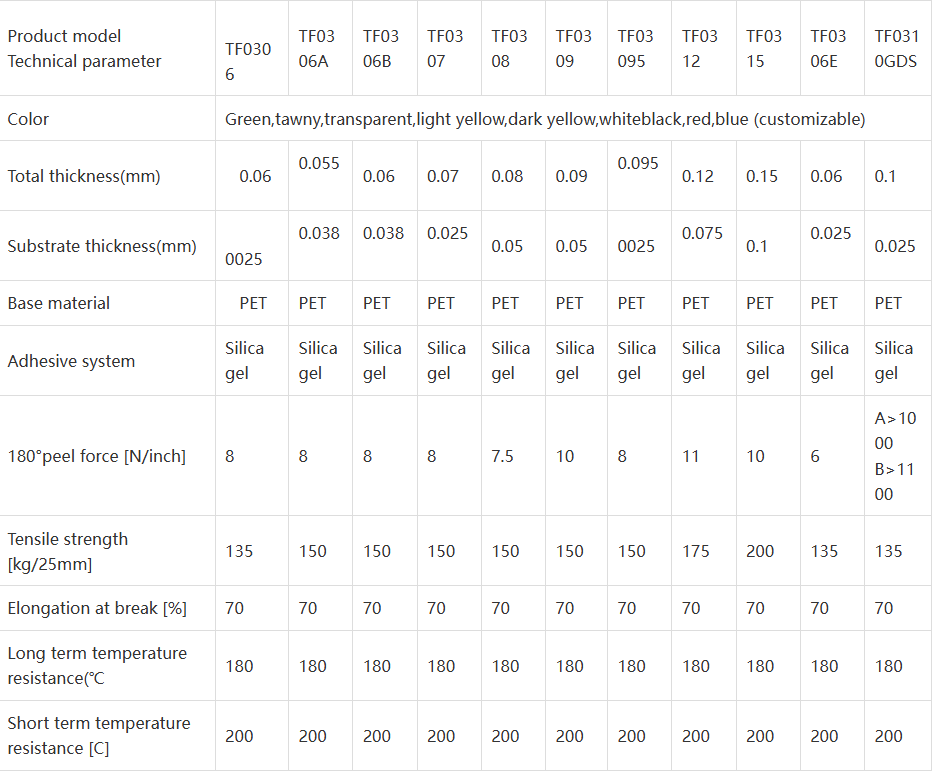

Product model Technical parameter	TF0306	TF0306A	TF0306B	TF0307	TF0308	TF0309	TF03095	TF0312	TF0315	TF0306E	TF0310GDS
Color	Green,tawny,transparent,light yellow,dark yellow,whiteblack,red,blue (customizable)
Total thickness(mm)	0.06	0.055	0.06	0.07	0.08	0.09	0.095	0.12	0.15	0.06	0.1
Substrate thickness(mm)	0025	0.038	0.038	0.025	0.05	0.05	0025	0.075	0.1	0.025	0.025
Base material	PET	PET	PET	PET	PET	PET	PET	PET	PET	PET	PET
Adhesive system	Silica gel	Silica gel	Silica gel	Silica gel	Silica gel	Silica gel	Silica gel	Silica gel	Silica gel	Silica gel	Silica gel
180°peel force [N/inch]	8	8	8	8	7.5	10	8	11	10	6	A>1000 B>1100
Tensile strength [kg/25mm]	135	150	150	150	150	150	150	175	200	135	135
Elongation at break [%]	70	70	70	70	70	70	70	70	70	70	70
Long term temperature resistance(℃	180	180	180	180	180	180	180	180	180	180	180
Short term temperature resistance [C]	200	200	200	200	200	200	200	200	200	200	200
